Binks

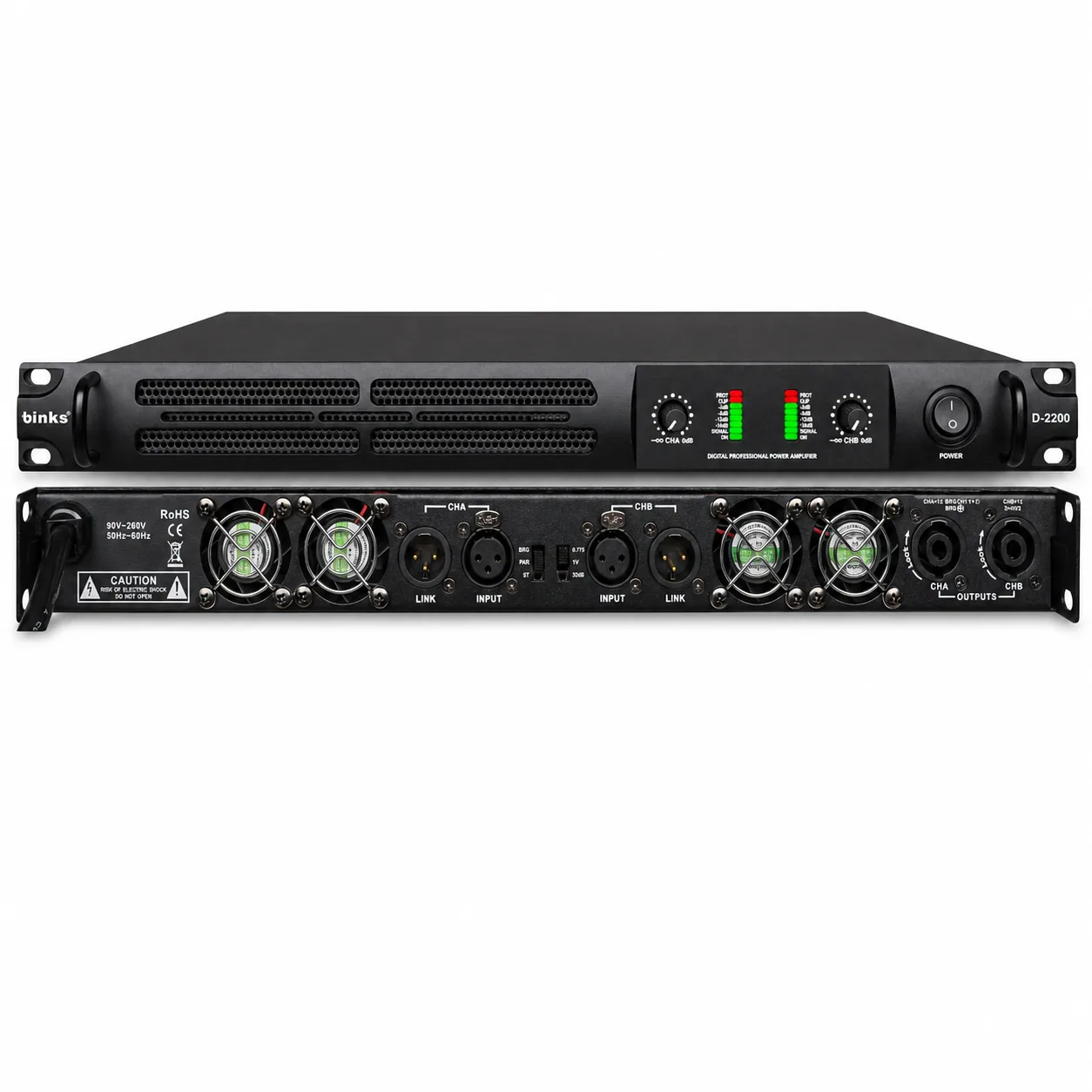

Binks D-2200 Class D чадлын өсгөгч
Model: D-2200
Техникийн үзүүлэлт
- Model
- D-2200
- Output Power (1KHz, <0.05% THD)
- 8Ω Stereo Power
- 2 × 2200W
- 4Ω Stereo Power
- 2 × 3800W
- 2Ω Stereo Power
- 2 × 4800W
- THD (20Hz–20KHz for 1W)
- <0.1%
- THD (1KHz and 1dB below clipping)
- <0.05%
- DSP Processor
- No
- Signal to Noise Ratio
- >106dB
- Frequency Response
- 10Hz–34KHz (+/-0.1dB)
- Damping Coefficient
- >600
- Impedance (Balanced/Unbalanced)
- 20KΩ / 10KΩ
- Gain (optional)
- 0.775V / 1V / 32dB
- Output Socket
- Speakon Connectors (NEUTRIK)
- Input Socket
- Combo XLR Type, 3-Pin
- Protection
- Short circuit, open circuit, thermal protection, overload, DC, super audio protection
- Power Requirement
- 90–265V~50Hz (PFC)
- Rack Space
- 1U
- Dimensions (L × W × H)
- 483 × 429 × 44mm
- Weight (Net)
- 7.78Kg
Үнийн санал авах →
Эсвэл утсаар: 8099-7172
