NEXO

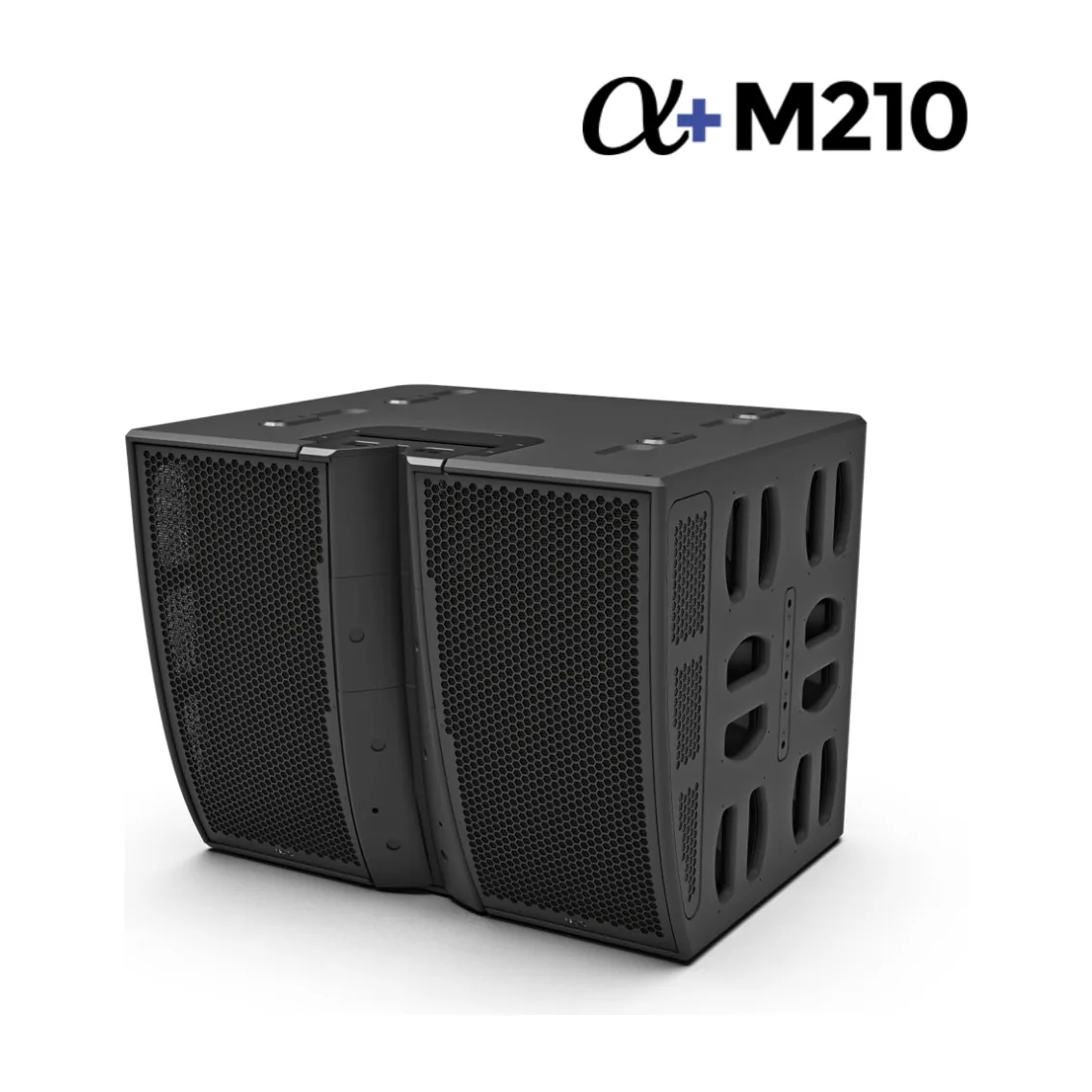

NEXO ALPHA+ M210 Main Module

The M210 is the high-power main module of the ALPHA+ system, delivering up to 148 dB peak SPL with two 10″ neodymium MF drivers and four ...

Техникийн үзүүлэлт

The M210 is the high-power main module of the ALPHA+ system, delivering up to 148 dB peak SPL with two 10″ neodymium MF drivers and four 3″ HF compression drivers. Its unique articulated HF waveguide provides adjustable vertical directivity and tunable horizontal coverage from 120° to 60°.; With NEXO Processing; Frequency Response @-6 dB 160 Hz to 20 kHz
Peak SPL@1m: 148 dB Peak
Operating Voltage: 45 Vrms (150 Vpeak)
Crossover Frequency: 500 Hz to 1500 Hz overlap, optimized with proprietary software NEXO Polar Combiner
Vertical Dispersion: Adjustable (-20°/+20° Default mode) or (-20°/+0° Long Throw mode)
Horizontal Dispersion: 120° (Bottom) to 60° (Top) continuously
Nominal Impedance: 4 Ohms + 4 Ohms
MF Components: 2 x High-efficiency pure medium neodymium 10” 8 Ohms
HF Components: 4 x Neodymium 3“ voice coil 1.4” throat driver on a BEA/FEA optimized Wavesource
Height x Width x Depth: 598mm x 755mm x 632 mm
Weight: 53 kg
