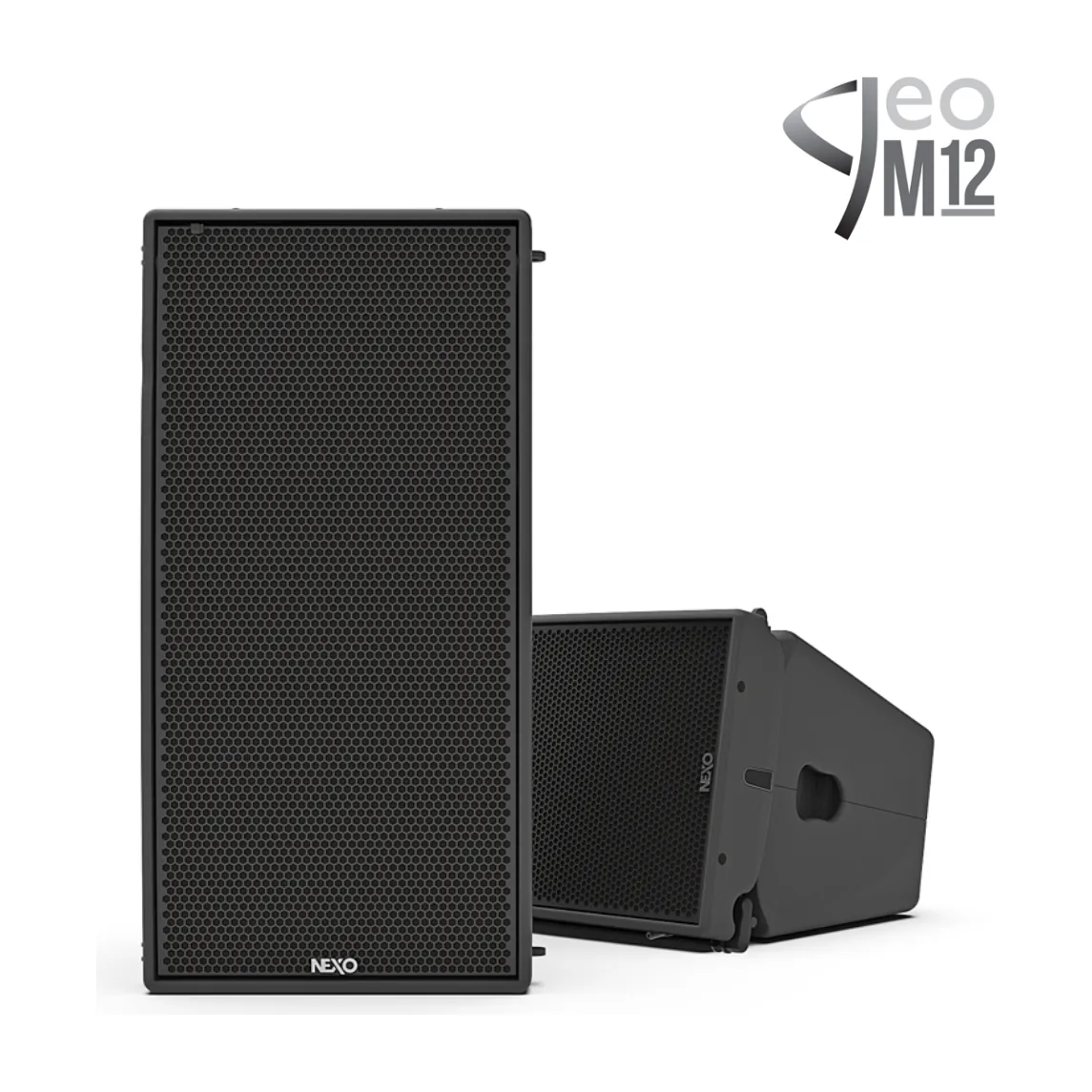

NEXO GEO M12 Line Array Speaker

Frequency Response @-6 dB: 50 Hz to 20 kHz

Техникийн үзүүлэлт

Frequency Response @-6 dB: 50 Hz to 20 kHz
Sensitivity 1W@1m: 105 dB SPL Nominal
Peak SPL@1m: 140 dB
Vertical Dispersion: 10°
Horizontal Dispersion: 80° / 120°
Passive Mode Crossover Frequency: 1.1 kHz
Active mode: (8 LF + 16 HF)
Passive mode: 8Ω
Recommended Power Active mode: (1250 Watts LF + 625 W HF) / Passive mode: 1250 Watts
LF Component: 1 x 12” 8 Ohms long excursion Neodymium driver with PDDTM
HF Component: 1 x 3” voice coil 1.4” throat driver on a BEA/FEA optimized HR WavesourceTM
Height x Width x Depth: 370mm x 700mm x 446 mm
Weight: Net: 34 kg (75 lbs)
Connectors: 2 x NL4, 4 poles connectors
