NEXO

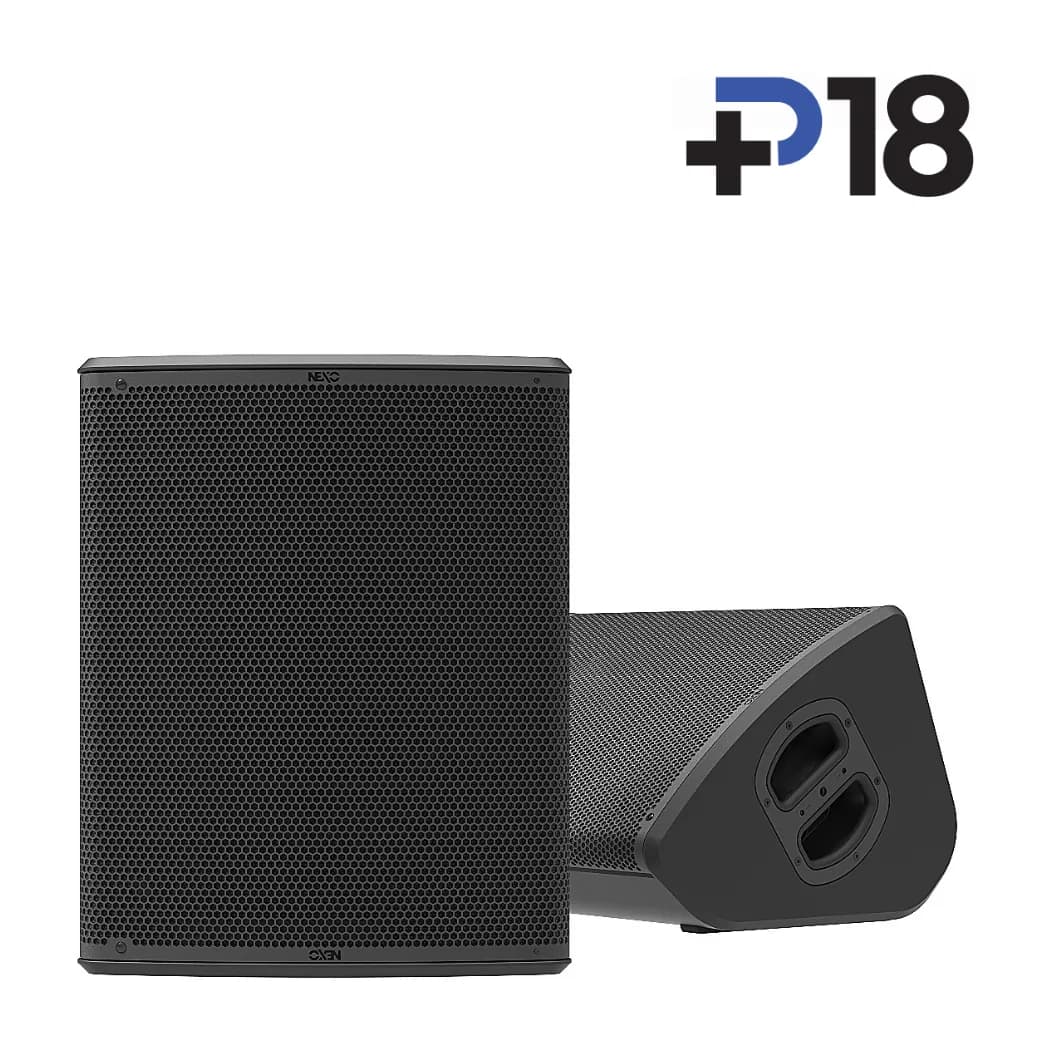

NEXO P+ Series P18 Point-Source Loudspeaker

Frequency Response @-6 dB: 50 Hz to 20 kHz

Техникийн үзүүлэлт

Frequency Response @-6 dB: 50 Hz to 20 kHz
Sensitivity 1W@1m: 107 dB SPL Nominal
Peak SPL@1m: 140 dB Peak (Passive mode) / 142 dB Peak (Active mode)
Operating Voltage: 55 Vrms (180 Vpeak)
HF Dispersion (according to flanges): 60°x60° (Default) - 90°x40° (with 90x40 flange) - 50°~90°x40° (with PS flange)
Crossover Frequency: 50 Hz, 85 Hz, 120 Hz
Nominal Impedance: Active (8 Ohms LF + 8 Ohms HF) / Passive 8 Ohms
Recommended Power: Active(1200 to 1900 W LF + 600 to 950 W HF) / Passive 1200 to 1900 W
Components: 1 x Coaxial Neodymium LF 18” 8 Ohms long excursion & HF 4“ 8 Ohms
Height x Width x Depth: 680mm x 579mm x 446mm
Weight: 33 kg
